Quick Details

  • Place of Origin: Anhui, China (Mainland)
  • Brand Name: SUOLONG
  • Model Number: SL-PH-2017-09-13-08
  • Hardness:: 98A±2
  • Color: milk white

Packaging & Delivery

Packaging Details 25KG/BAG Granules sealed in poly bag and paper-plastic bag outside 25 tons in a 20' container
Delivery Time 5-15
Product Description

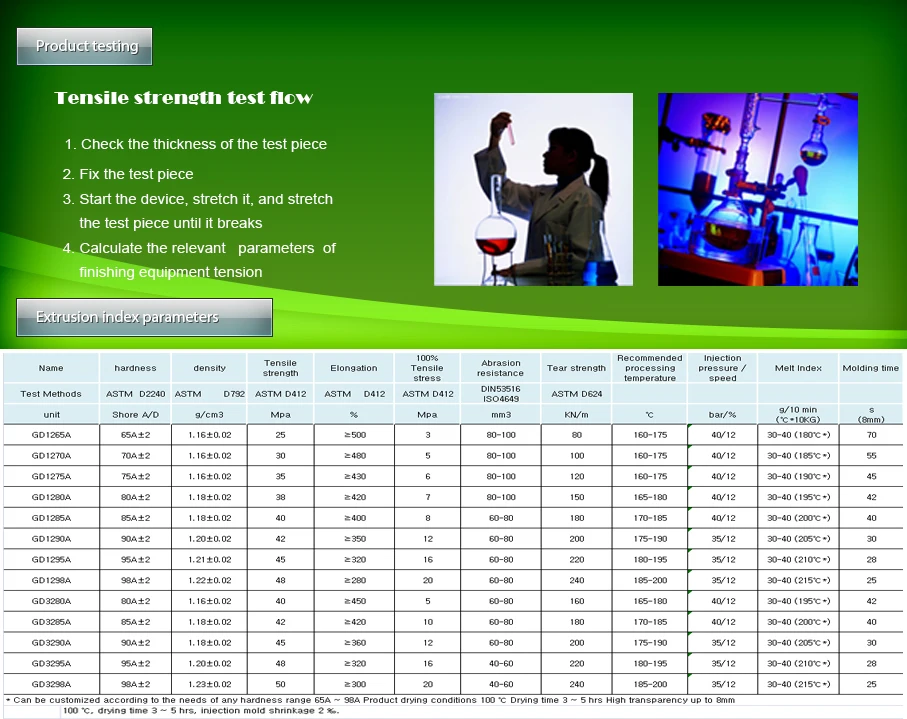

Model No GD1265A  GD1270A  GD1275A  GD1280A  GD1285A  GD1290A  GD1295A

GD1298A  GD3265A  GD3270A  GD3275A  GD3280A  GD3285A  GD3290A

GD3295A  GD3298A

AppearanceParticles
Color milk white
ClassificationExtrusion level
Application Pipe   hose    Wire and Cable  film  Sheet  medical equipment  Fire Hose



Why us

Anqing Cify Grand New Material Co., Ltd. was established in 2010 (formerly known as Anqing City Everbright Resin Co., Ltd., established in 2004). The company is located in Anqing City, Anhui Province Daguan District Economic Development Zone, construction area of 20,000 square feet, is a professional research and development, production and sales of thermoplastic polyurethane (TPU) manufacturers. Products are divided into injection molding grade, extrusion level, ink level, hot- melt level, and other categories of dozens of products. After more than 10 years of development, the introduction of hardware and software facilities and world-class control of the Department, and the establishment of a series of standard quality management system, improve the process of production. In 2014, Anhui Science and Technology Department was identified as "hightechenterprises."
"Customer first, integrity-based" is our company has always pursued the service concept, product sales to domestic and foreign. Company always concerned about customer needs - to do a good job pre -sale, sale and after-sales service.

         Factory Direct            15+ years                      manufactur     experience                  Annual Output
             5000 tons
          Approved by
         FDA/ISO/SGS
     Offer Free Sample




product details
Production Flow



FAQ


tenQ: When products have air bubbles, how to solve this problem?

A:In the injection molding process, sometimes there are many air bubbles in the product, which will affect its strength and mechanical properties and product appearance is also greatly harmed. Usually products due to uneven thickness, or mold with protruding ribs, the material in the mold cooling rate is different, resulting in uneven contraction, easy to form bubbles, so the mold design to pay special attention.

In addition raw materials are not fully dried, still contain some water, melt in the heat decomposition into gas, easy to enter the cavity to form bubbles. Therefore, when the product bubbles, you can check the following factors, and do deal with.

Cause       Approach

The raw material is damp        Thoroughly dried

Insufficient injection

Check the temperature,

injection pressure and injection time

Injection speed too fast  Reduce injection speed

Raw material temperature is too high    Lower melt temperature

Back pressure is low        Increase back pressure to the appropriate

Finished section, rib or column too thick.        Change finished product design or spout position

Sprue overflow is too small      Increase the runner and entrance

Mold temperature is not equal        Adjust the mold temperature to equal

Screw back too fast Reduce screw backing speed

Q: If your products Customizable?

A: Yes, we can recommend proper products to customers base on the requirements, or can improve the specification to meet their particular requires.

Q: How to solve the crystal point problem in thin-film TPU?

A: The high temperature and decomposition temperature of all additives should be considered,in the TPU processing temperature up to 200 ~ 220 under the conditions of decomposition will not be the formation of carbon impurities and the crystallization point.

Q: How to solve the warping of plastic product?

A: A:There's many reason for warping of plastic products , such as too fast to mold, mold temperature is too high, uneven molding temperature and flow system asymmetry.

2 of the greatest possibilities are:

Plastic parts thickness uneven or its corner is not smooth, and therefore can not cooling evenly, resulting in warpage.

Q: The Production of TPU Injection Black Point and Its Solution

A: 1. Workshop production environment is poor

     2. TPU raw materials are not pure

     3. Injection molding machine operation is not standardized

     4. Machine operator's level of process debugging is not enough.

     5. User's bad operating habits

     6. Injection molding machines lack of cleaning and mainance
